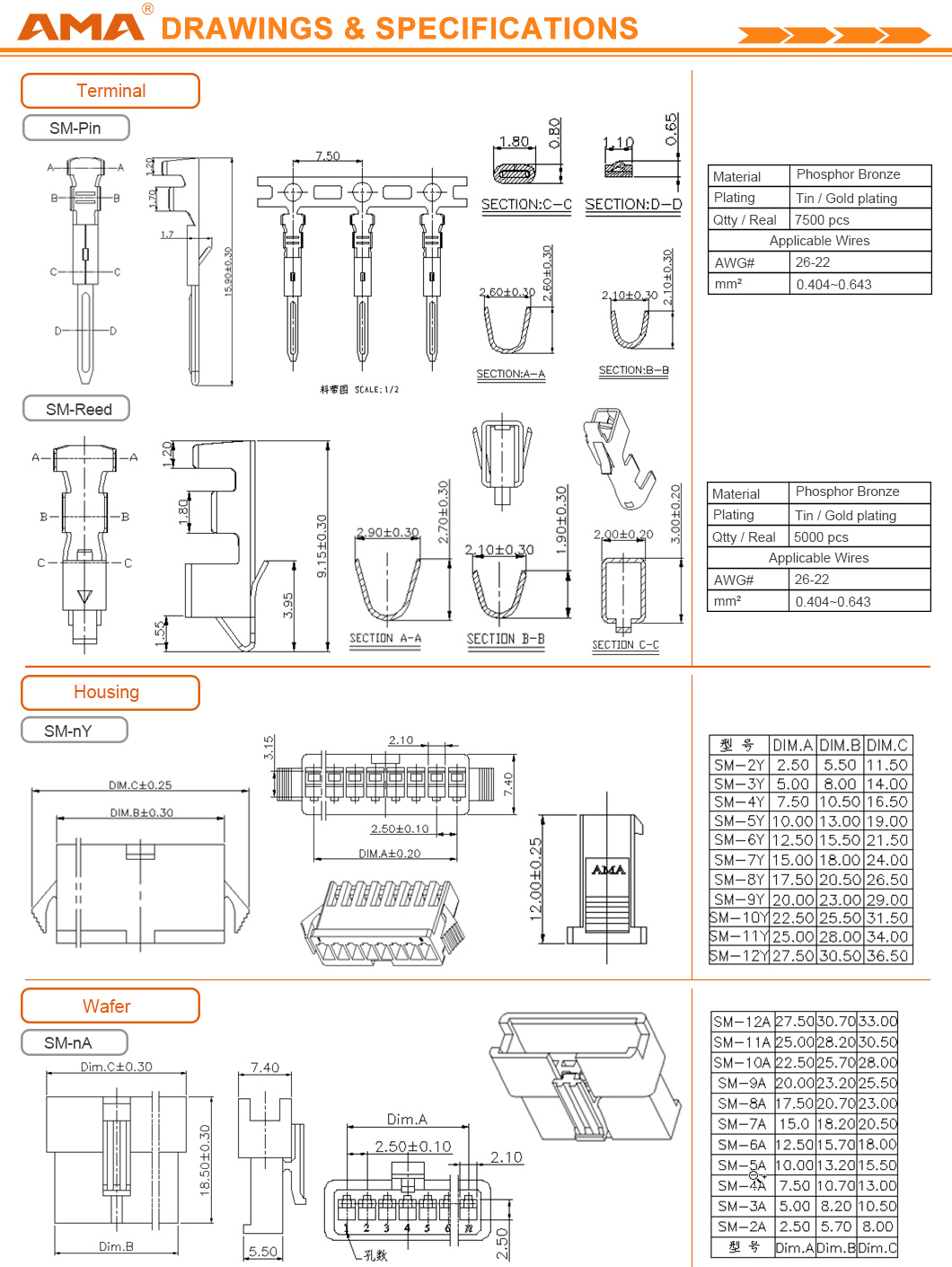

SM 2.50mm Pitch wire to wire Connector
-2.50mm centerline pitch.
-Discrete wire interconnect available in wire to wire.
-Available in tin or gold plating.
-UL94V-0 rated housings material.
▲SPECIFICATIONS Unit:mm
△Current rating: 3 A AC/DC;
△Voltage rating: 250 V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 30 mΩ max;
△Insulation resistance: 500 MΩ min;
△Withstanding voltage: 1000 VAC/minute;
