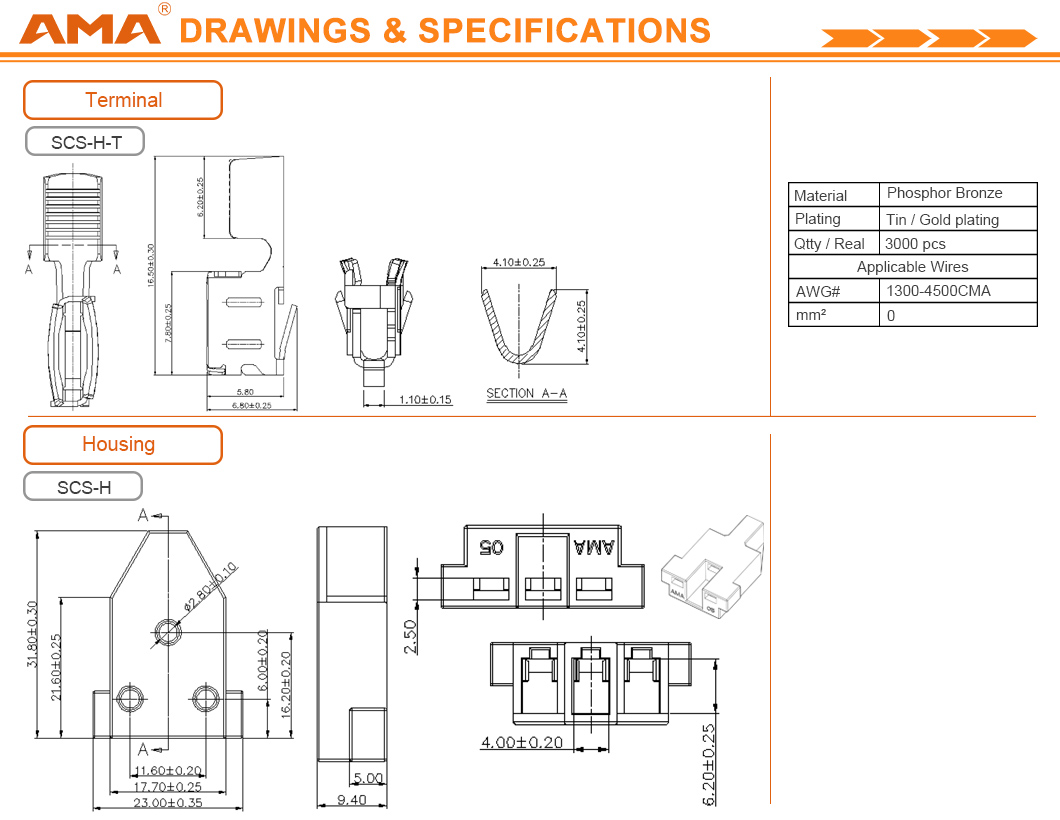

SCS-H 11.60mm Pitch Compressor IDC Connector
-11.60mm centerline pitch.
-Enameled Wire IDC connector.
-Available in tin or gold plating.
-UL94V-0 rated housings material.
-Compressor Connector
▲SPECIFICATIONS Unit:mm
△Current rating: 10 A AC/DC
△Voltage rating: 220 V AC/DC
△Temperature range: -25℃ to +85℃;
△Contact resistance: 4 mΩ max;
△Insulation resistance: 100 MΩ min;
△Withstanding voltage: 1500 VAC/minute;
