PH 2.00mm Pitch wire to board Connector
-2.0mm centerline pitch.
-Discrete wire interconnect available in wire to board.
-(SMT) Surface mount technology available design
-Available in tin or gold plating.
-UL94V-0 rated housings material.
-JST Equivalent PH

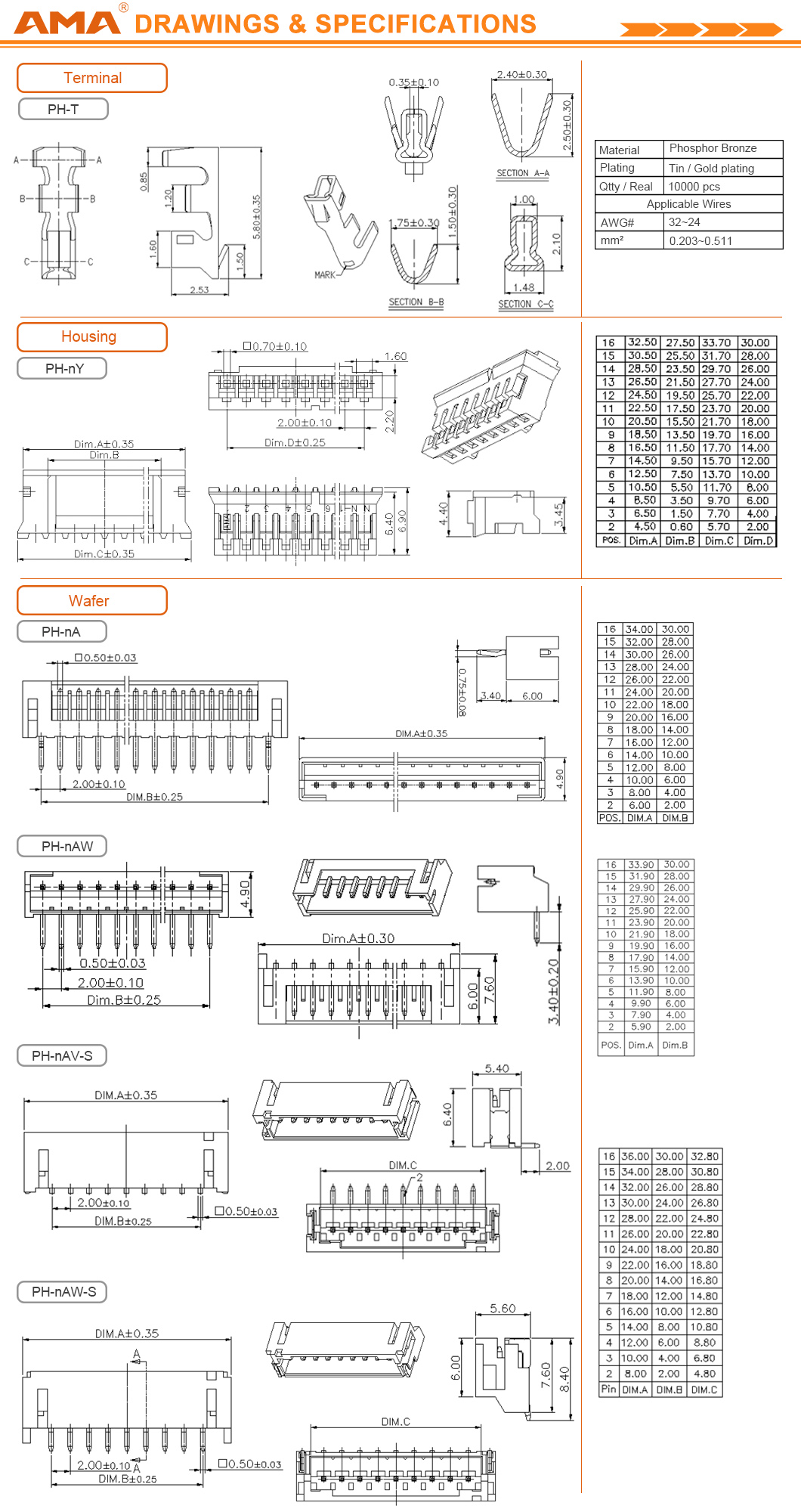

▲SPECIFICATIONS Unit:mm
△Current rating: 2A AC/DC;
△Voltage rating: 100V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 30 mΩ max;
△Insulation resistance: 1000 MΩ min;
△Withstanding voltage: 800 VAC/minute;
