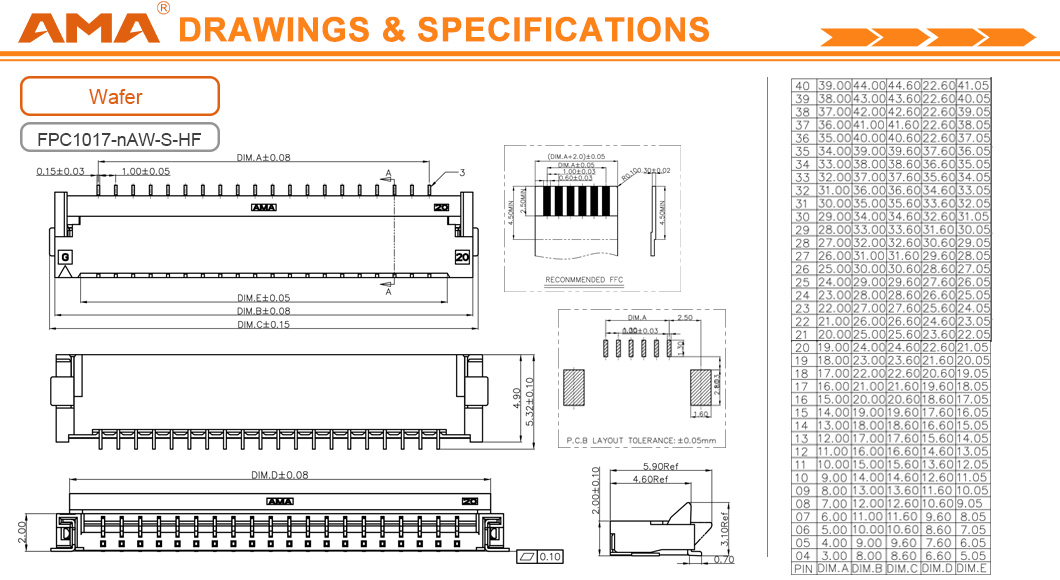

FPC1017 1.00mm Pitch Wire to Board FPC Connector
-1.00mm centerline pitch.
-Discrete wire interconnect available in wire to board.
-(SMT) Surface mount technology design
-Available in semi gold plating.
-UL94V-0 rated housings material.
-FPC Connector
▼SPECIFICATIONS Unit:mm
△Current rating: 0.5A AC/DC;
△Voltage rating: 50V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 40 mΩ max;
△Insulation resistance: 500 MΩ min;
△Withstanding voltage: 250 VAC/minute;
