1255 1.25mm Pitch Wire To Board Connector
-1.25mm centerline pitch.
-Discrete wire inter connect available in wire to board.
-(SMT) Surface mount technology available design
-Housing lock latch design for housing.
-Crimp terminal available in tin or gold plating.
-UL94V-0 rated housings material.

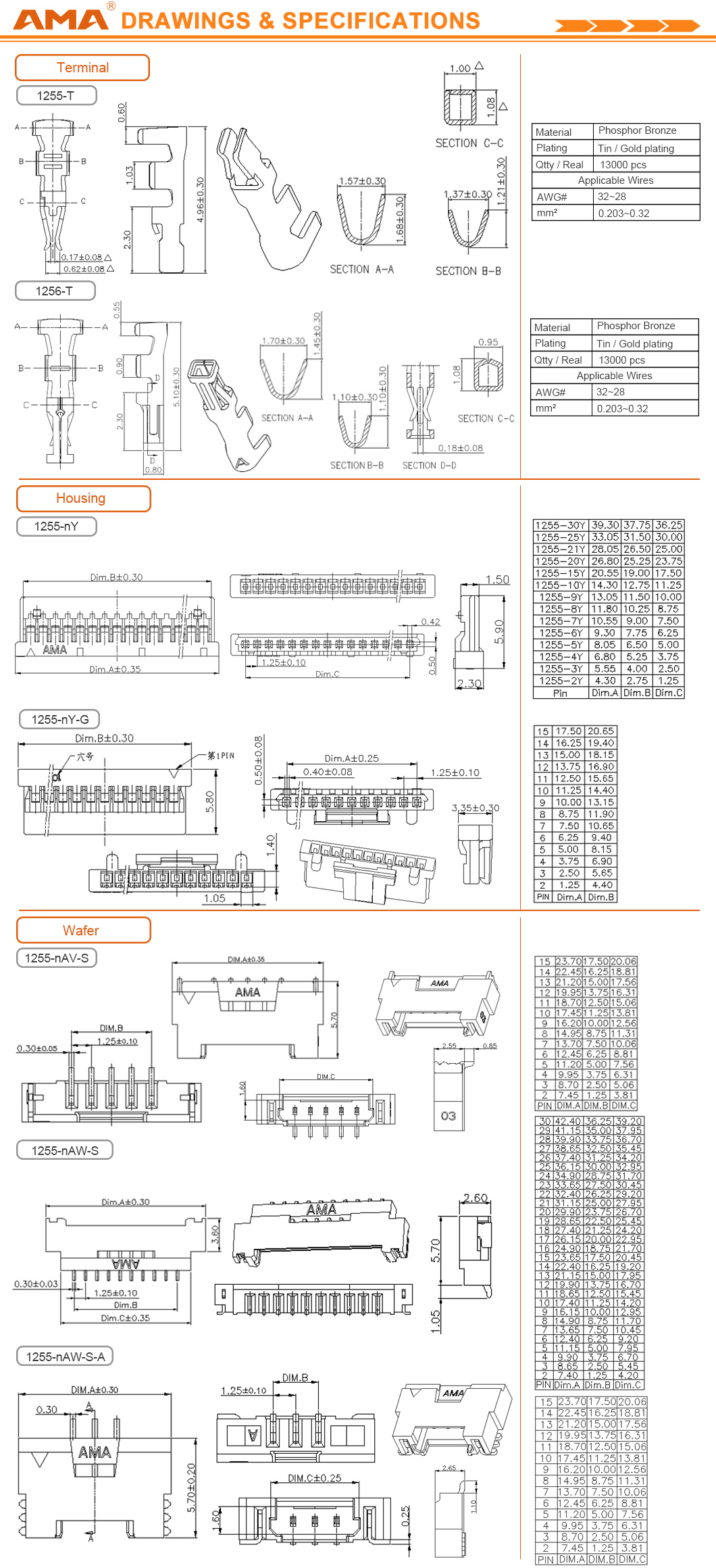

▲SPECIFICATIONS Unit:mm
△Current rating: 1A AC/DC;
△Voltage rating: 150V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 30 mΩ max;
△Insulation resistance: 500 MΩ min;
△Withstanding voltage: 500 VAC/minute;
