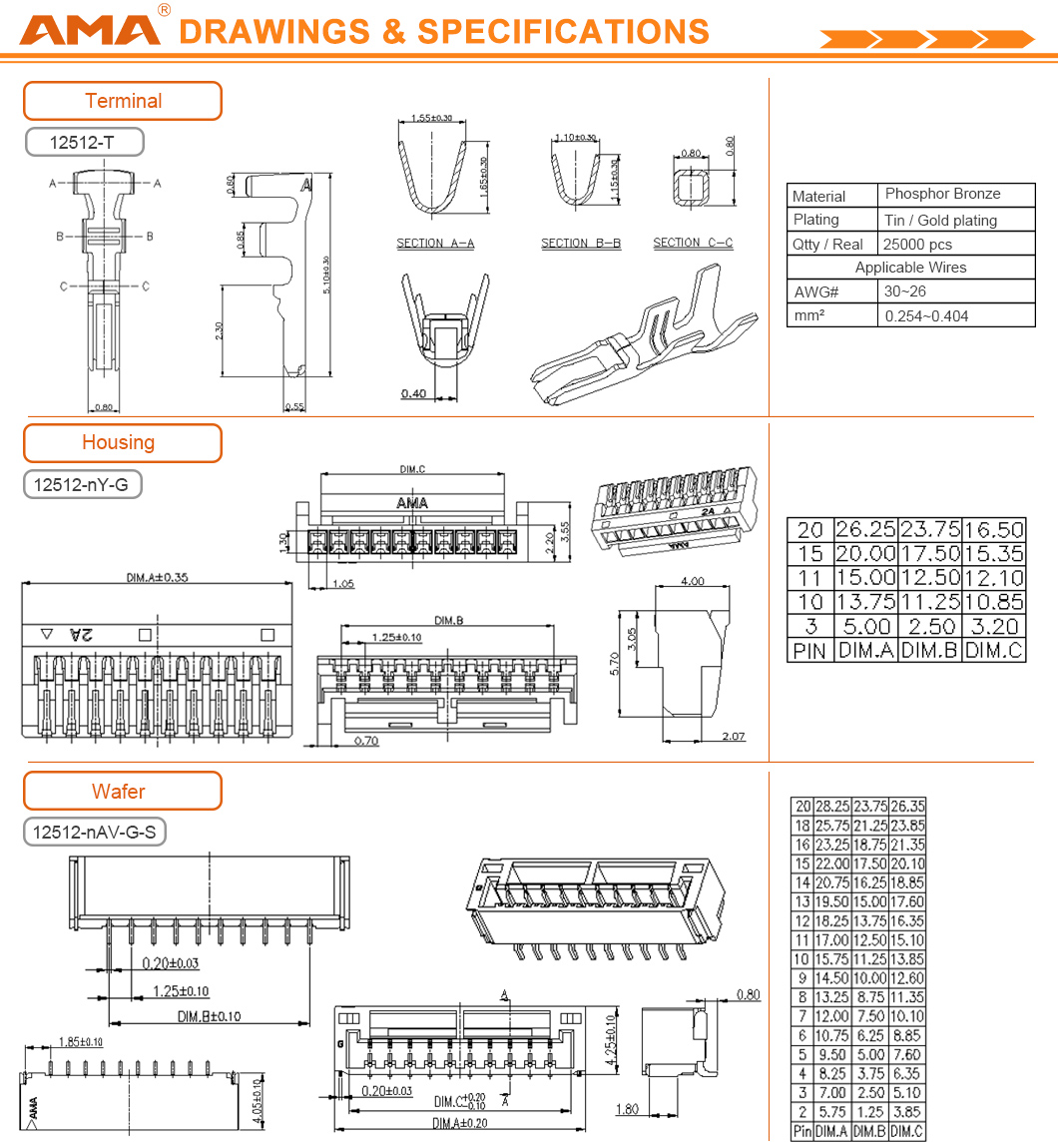

12512 1.25mm Pitch Wire to Board Connector
-1.25mm centerline pitch.
-Discrete wire inter connect available in wire to board.
-(SMT) Surface mount technology available design.
-Housing lock latch design
-Crimp terminal available in tin or gold plating.
-UL94V-0 rated housings material.
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
