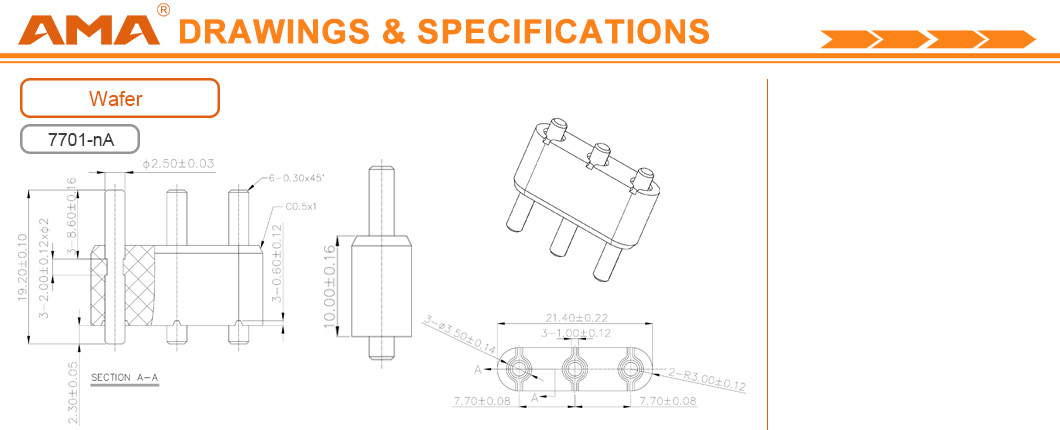

7701 7.70mm Pitch wire to board Connector
-7.70mm centerline pitch.
-Discrete wire interconnect available in wire to board.
-Available in tin or gold plating.
-UL94V-0 rated housings material.
-Motor Connector
▲SPECIFICATIONS Unit:mm
△Current rating: /
△Voltage rating: /
△Temperature range: -25℃ to +85℃;
△Contact resistance: 1 mΩ max;
△Insulation resistance: 1000 MΩ min;
△Withstanding voltage: 1500 VAC/minute;
