5005 5.00mm Pitch wire to board Connector
-5.00mm centerline pitch.
-Discrete wire interconnect available in wire to board.
-Available in tin or gold plating.
-UL94V-0 rated housings material.

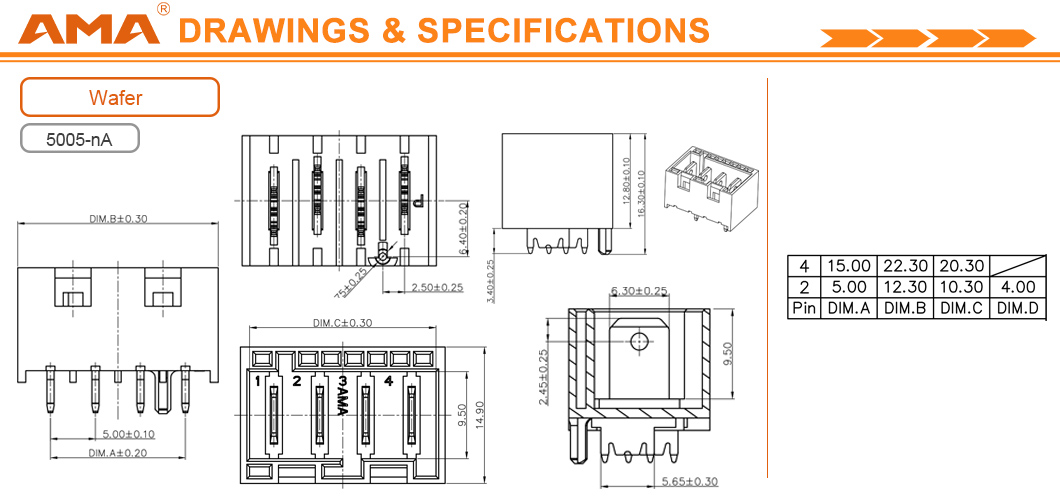

▲SPECIFICATIONS Unit:mm
△Current rating: 16A AC/DC;
△Voltage rating: 250V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 20 mΩ max;
△Insulation resistance: 1000 MΩ min;
△Withstanding voltage: 2000 VAC/minute;
