3967 3.96mm Pitch wire to board Connector
-3.96mm centerline pitch.
-Discrete wire interconnect available in wire to board.
-Available in tin or gold plating.
-UL94V-0 rated housings material.
-TE/TYCO Equivalent Connector

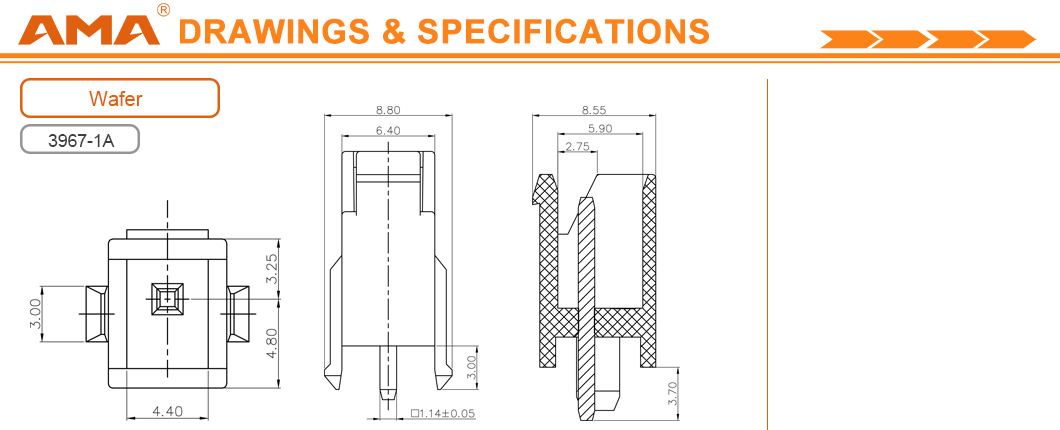

▲SPECIFICATIONS Unit:mm
△Current rating: 8A AC/DC;
△Voltage rating: 250V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 20 mΩ max;
△Insulation resistance: 1000 MΩ min;
△Withstanding voltage: 1500 VAC/minute;
