1508 1.50mm Pitch Wire to Board Connector
-1.50mm centerline pitch.
-Discrete wire interconnect available in wire to board.
-(SMT) Surface mount technology available design.
-Crimp terminal available in tin or gold plating.
-UL94V-0 rated housings material.

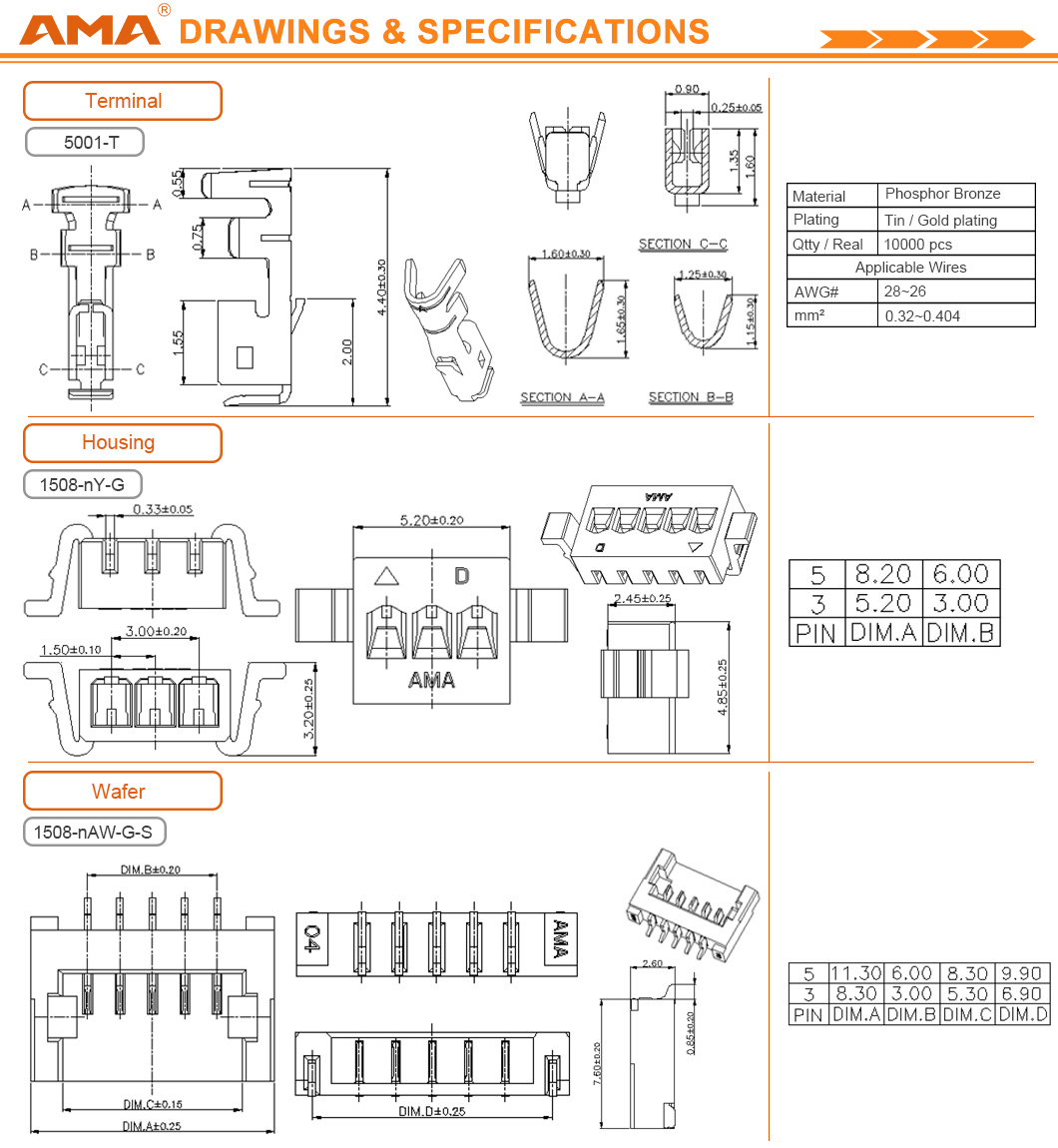

▲SPECIFICATIONS Unit:mm
△Current rating: 0.75A AC/DC;
△Voltage rating: 125V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 30 mΩ max;
△Insulation resistance: 1000 MΩ min;
△Withstanding voltage: 1000 VAC/minute;
