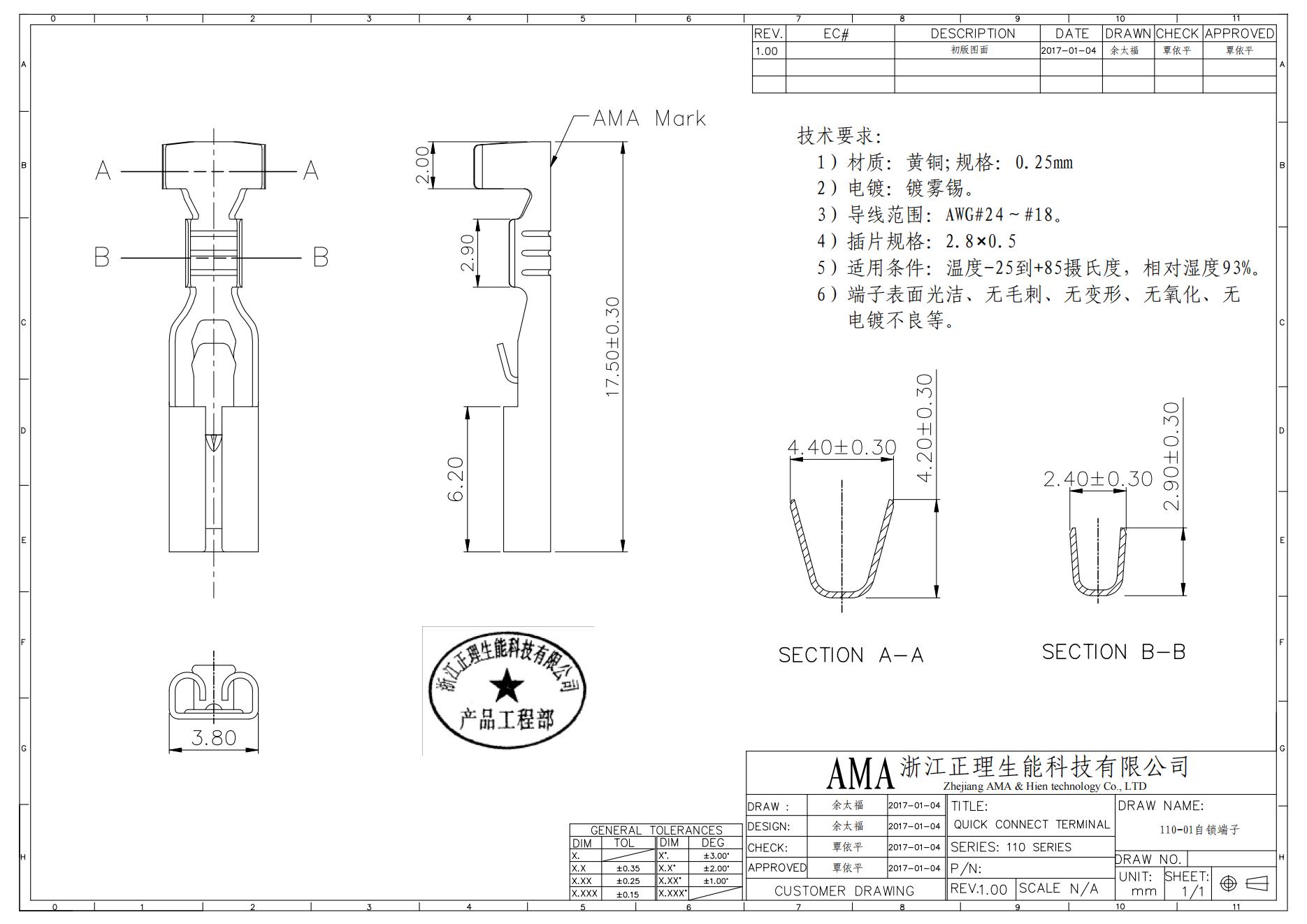

110-01 Faston Terminal, with TPA, Female Straight, Quick Disconnect, Insulated Crimping Terminal
-Material: Brass with Tin plated
-Terminal Type: Female
-Wire Gauge (AWG): 24 – 18
-Wire Gauge (mm²): 0.2047 – 0.8107
▲SPECIFICATIONS
△Current rating: 2A AC/DC;
△Voltage rating: 250 V AC/DC;
△Temperature range: -25℃ to +85℃;
△Contact resistance: 30 mΩ max;
